Aquauno Logica
code 8422

Download guide
INSTALLATION

Do not install the water timer inside valve boxes, below ground level or indoors. Do not use the water timer with chemicals or liquids other than water. Do not use the water timer with operating pressures lower than 0.5 bar (7.3 psi) or higher than 10 bar (145 psi).

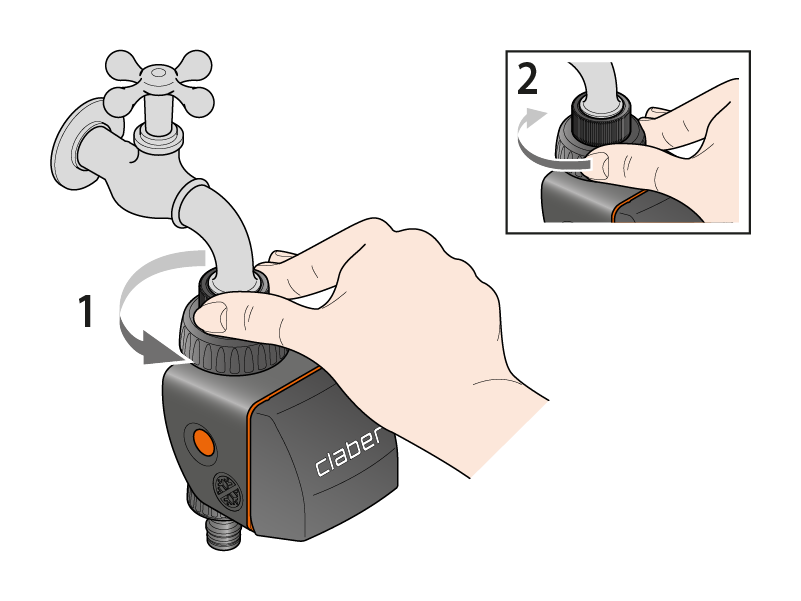

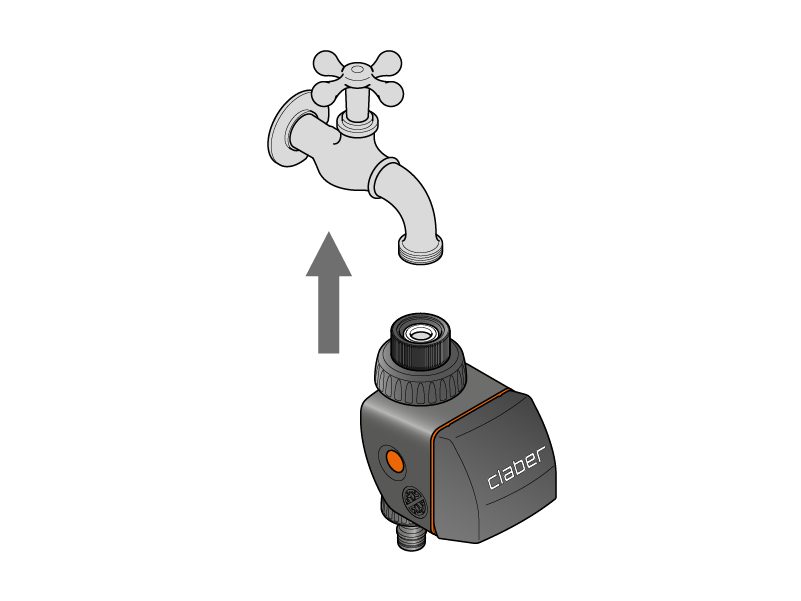

Connect the timer to the tap.

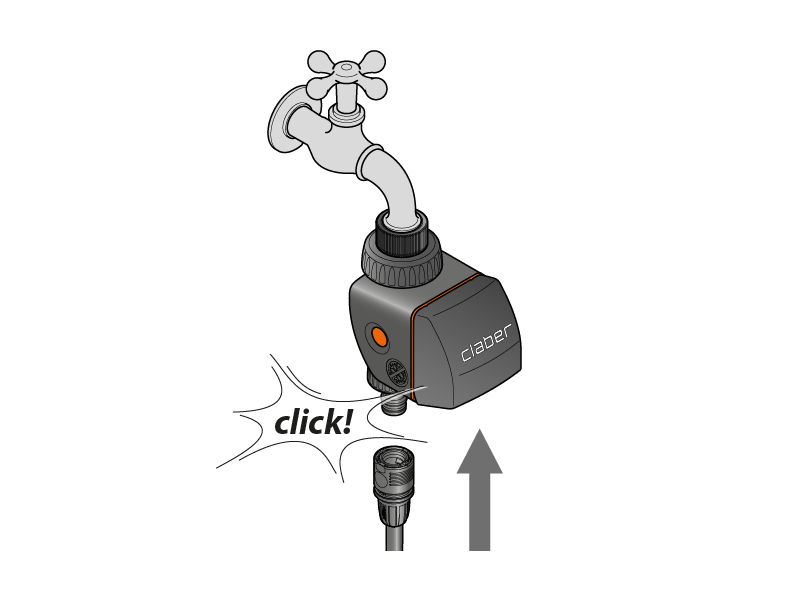

Connect the hose on the watering line.

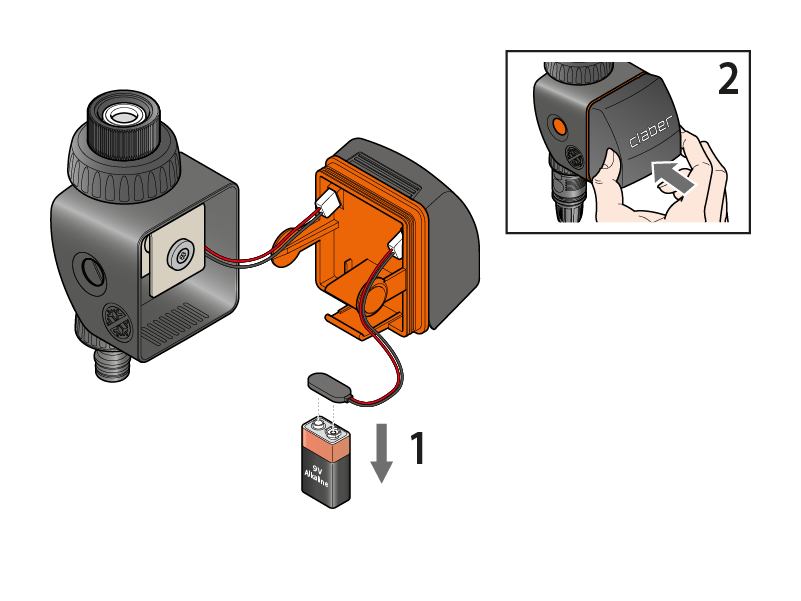

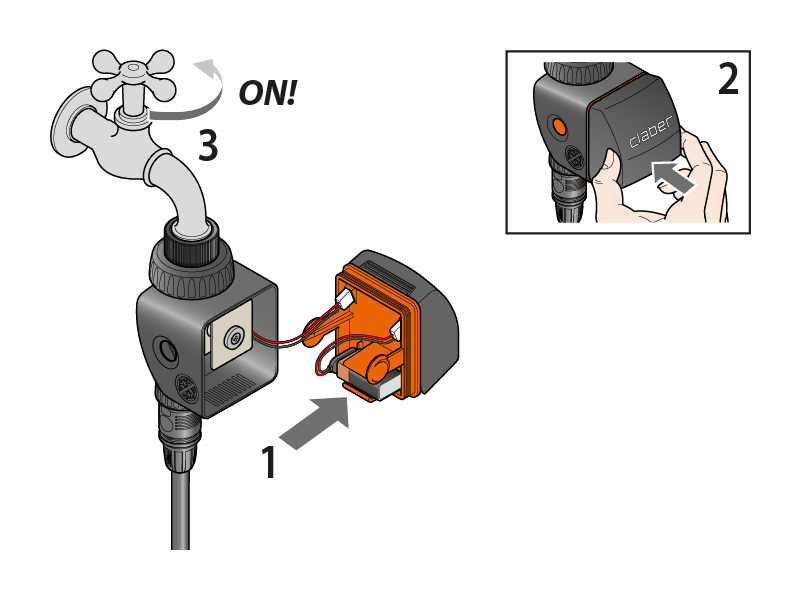

FITTING THE BATTERY

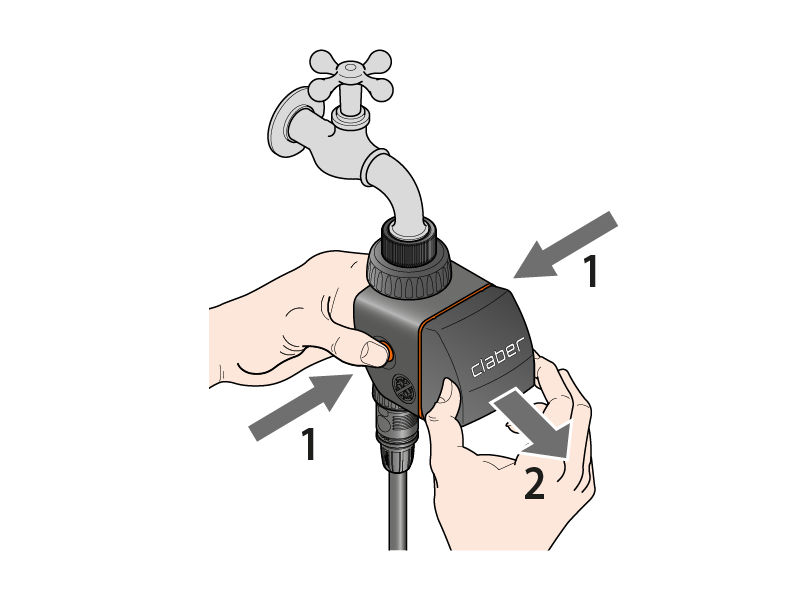

Press the two side buttons to open the timer.

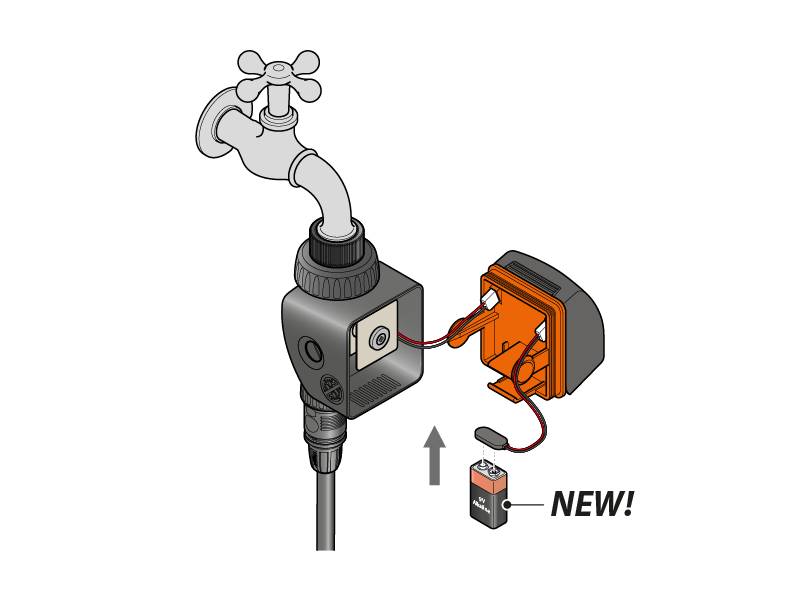

Insert a new, branded 9V alkaline battery.

Important: remember to turn on the water tap.

PROGRAMMING THE TIMER

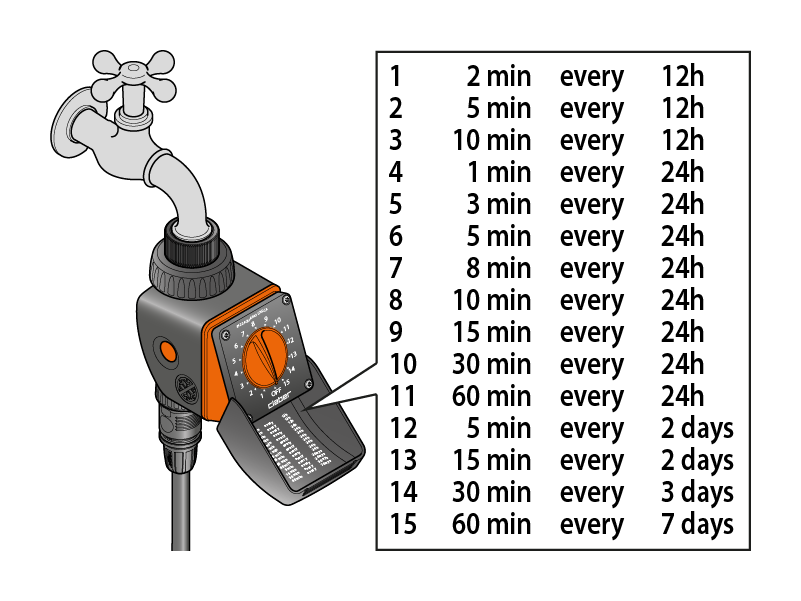

All of the programme characteristics are summarised in a list provided on the protective cover. Each programme has a pre-set irrigation run time (i.e. how long to irrigate for) and frequency (i.e. how often to irrigate). Neither of these settings can be changed.

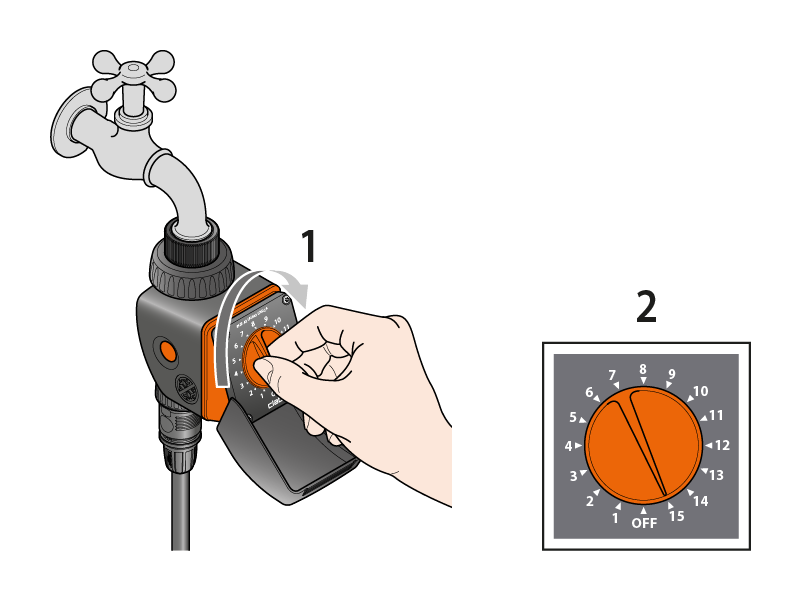

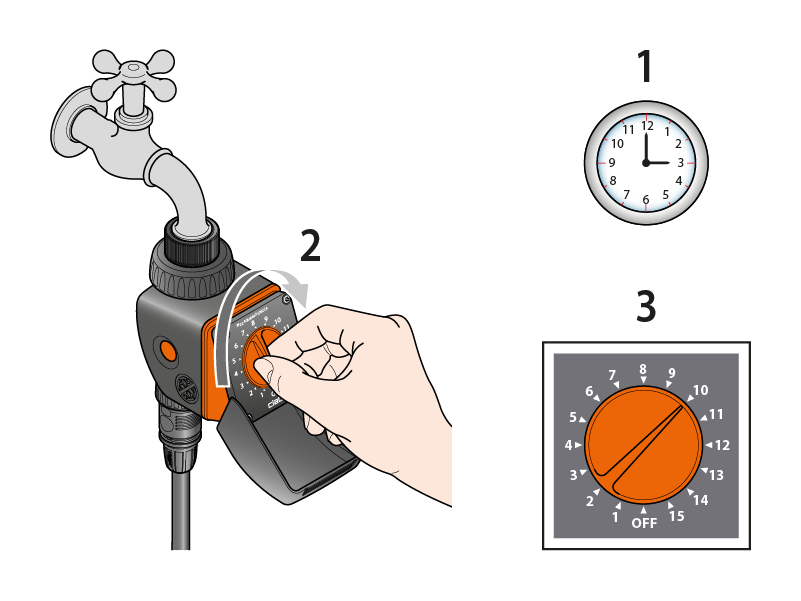

At the time you want irrigation to start, turn the dial to the desired programme.

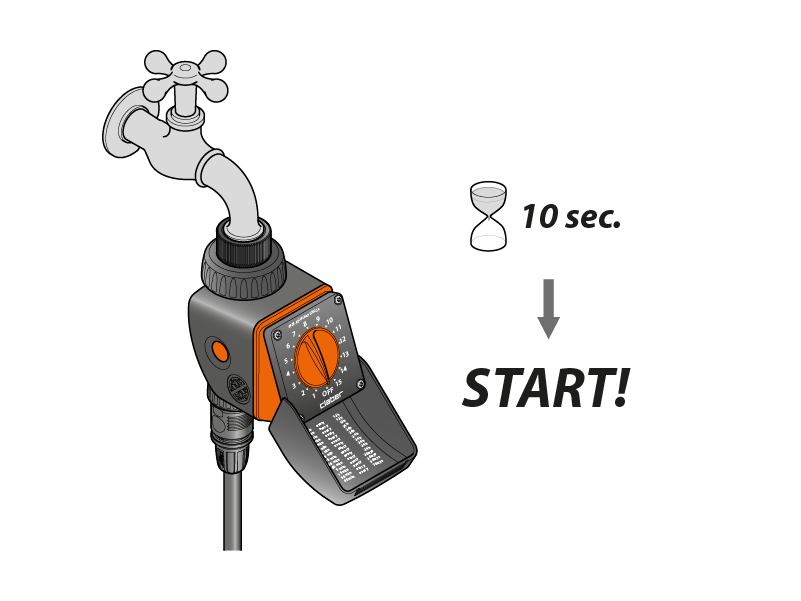

The selected programme starts after 10 seconds.

CHANGING A WATERING PROGRAMME

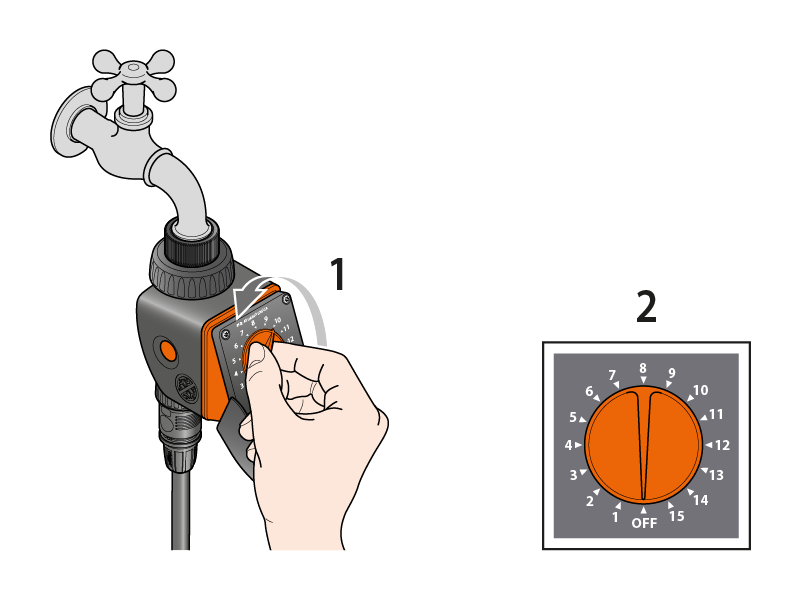

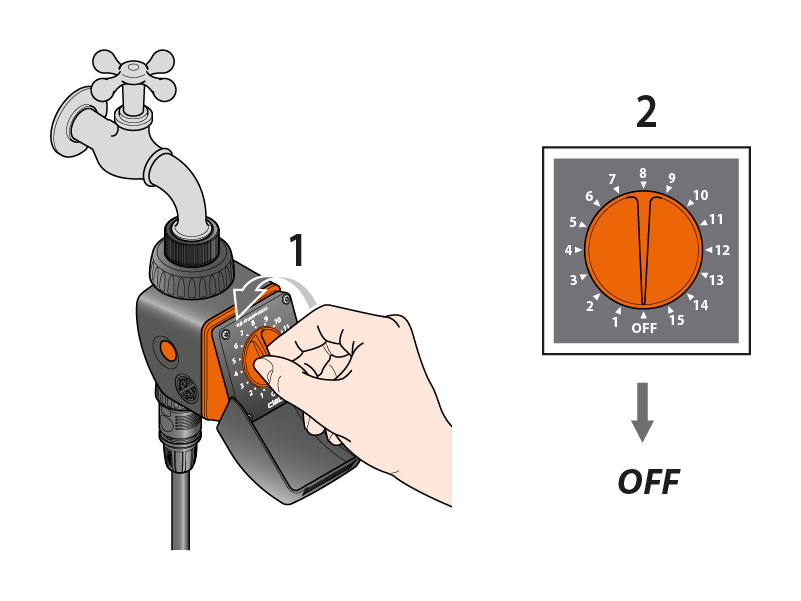

The irrigation programme can be changed at any time by turning the dial to OFF.

Then turning it to the new programme you want to use at the time you want the irrigation cycle to start.

With the knob at OFF, the programme currently running will be cancelled.

CLEANING AND MAINTENANCE

Clean the filter at the end of each season and check it regularly.

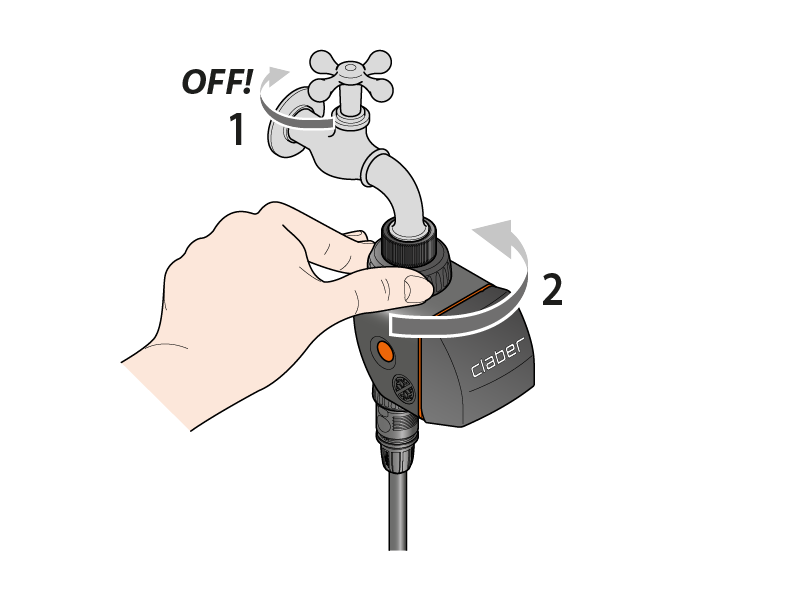

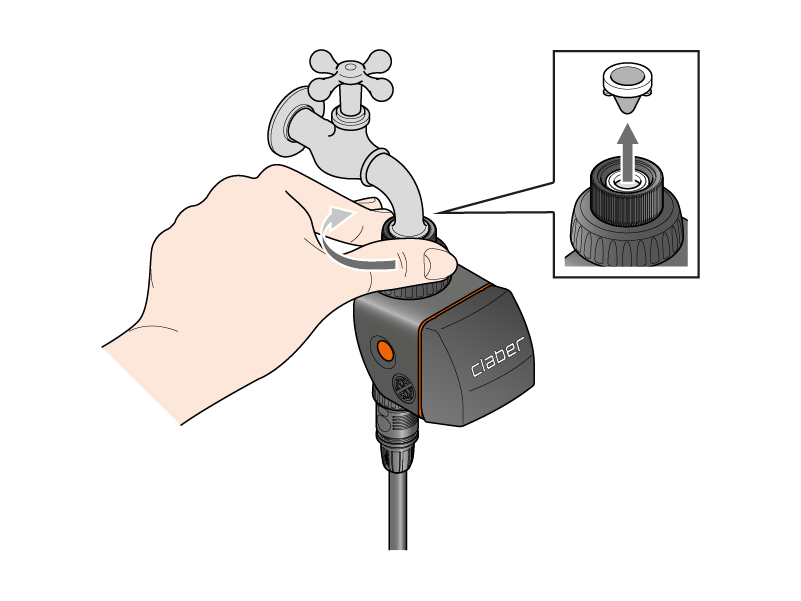

Turn off the water tap and loosen the screw collar, turning anticlockwise.

Loosen the 3/4" screw collar of the tap connector, turning clockwise.

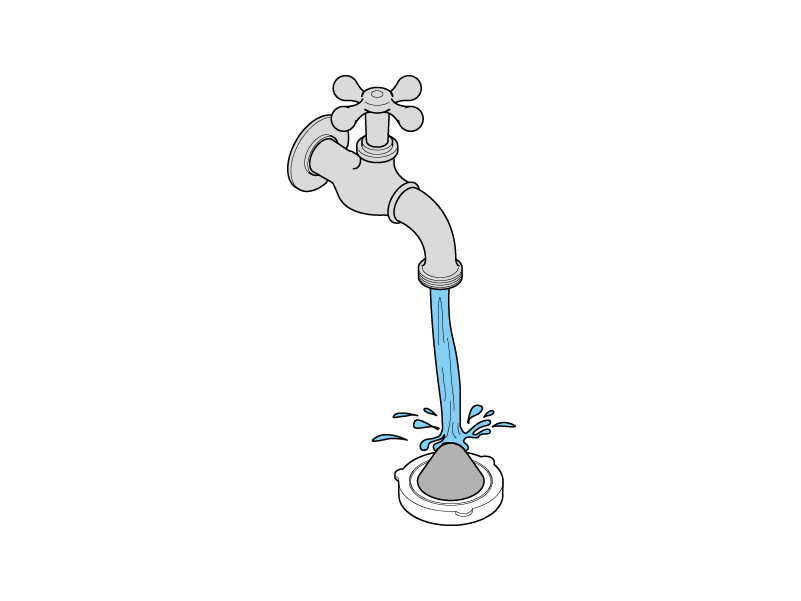

Remove the filter. Rinse the filter clean under running water. After washing, reassemble all parts as before.

To clean the internal components properly, please see the diagram showing the mechanical parts to be disassembled/ reassembled at the end of the season .

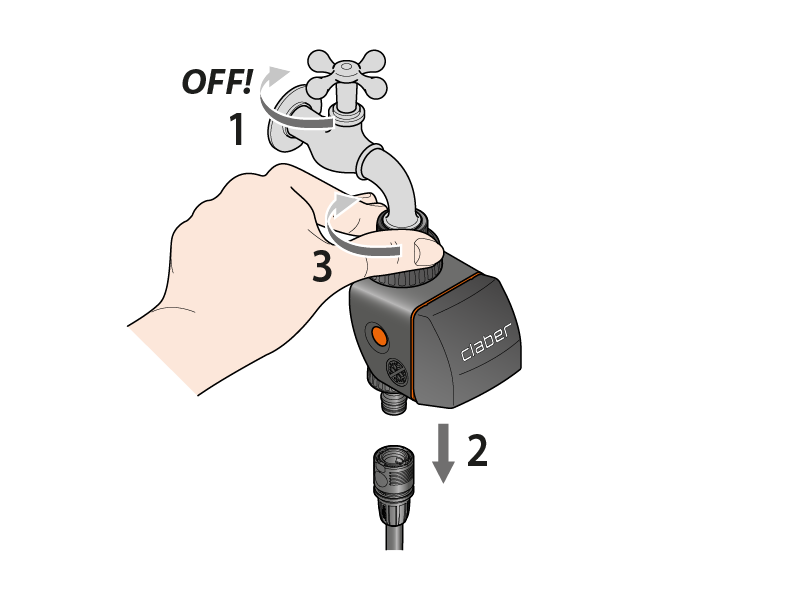

At the end of the season, before the winter frosts, disconnect the timer from the tap.

Remove the battery.

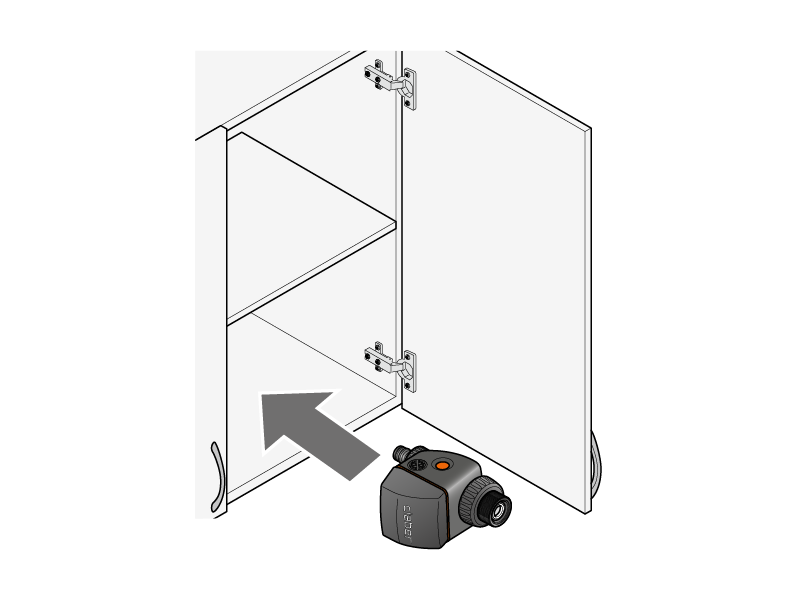

Store the timer in a sheltered place, away from damp, where the temperature does not fall below 3°C.
