24V - 1” female solenoid valve
code 90814

Download guide
USE

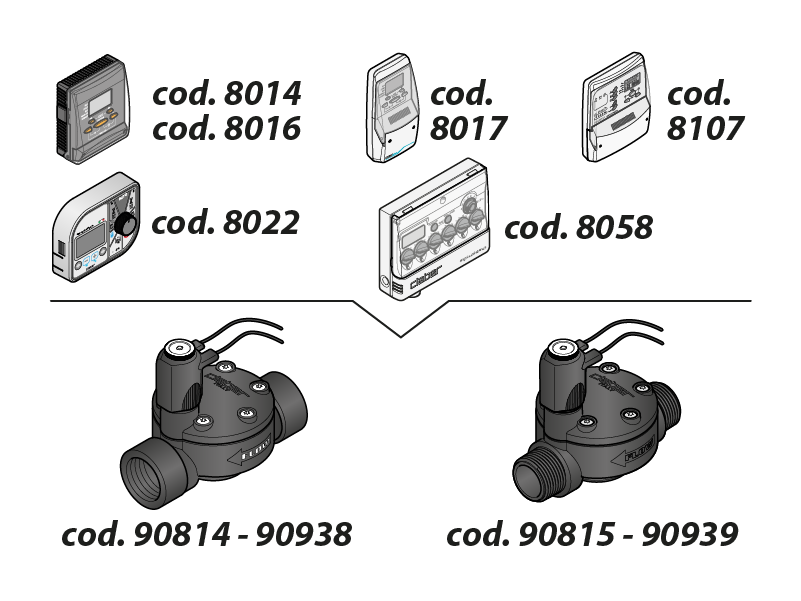

The function of the solenoid valve is to open and close the water lines on the water time control. They work with any type of 24 V AC multi-line water timer with the following control units, Cometa, Cometa Evolution 24V (code 8014 - 8016), Meteocometa (cod. 8017), Meteopragma (cod. 8107), Aqua-Home 4-6-8 (cod. 8022) and Multipla AC 230/24V LCD (code 8058).

CONNECTION

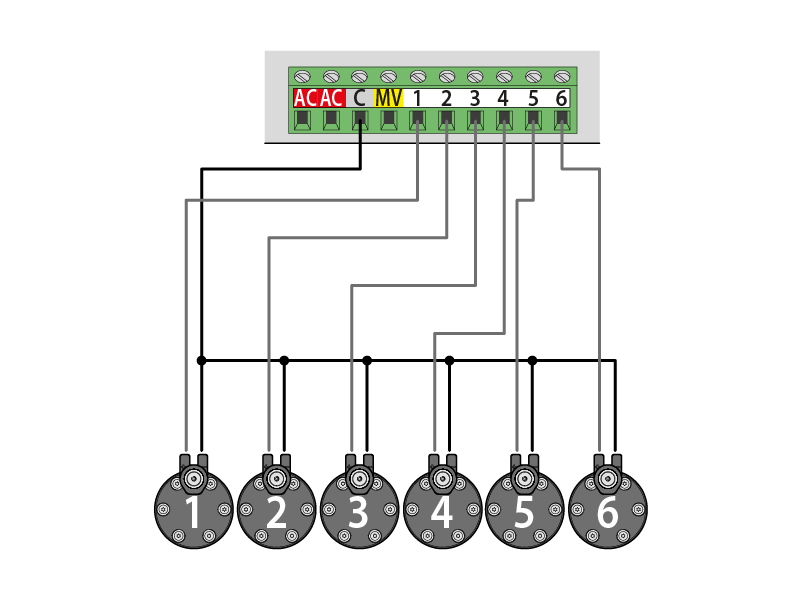

Wiring diagram for the connection of one or more than one solenoid valve to the MULTIPLA AC 230/24V LCD control unit (code 8058).

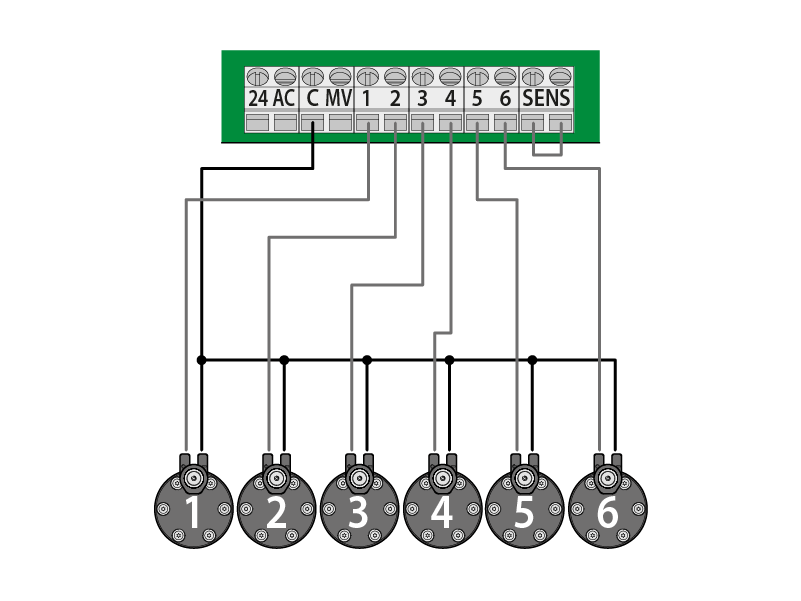

Wiring diagram for the connection of one or more than one solenoid valve to the COMETA EVOLUTION 24V control unit (code 8014 - 8016).

POSITIONING

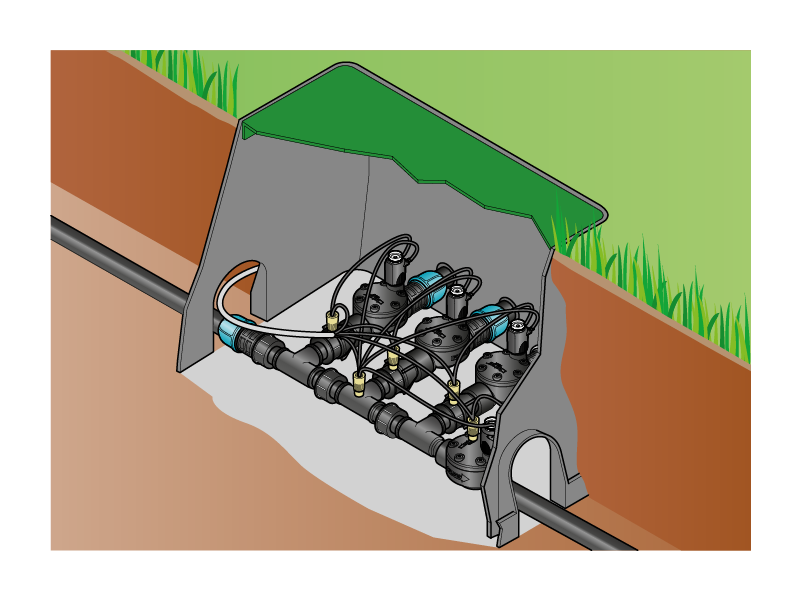

Solenoid valves are usually fitted inside the underground valve boxes code 90510 - 90515 - 90500.
