360° jet pop-up - 4”
code 90043

Download guide
INCREASE OR REDUCE THE LENGHT OF THE JET

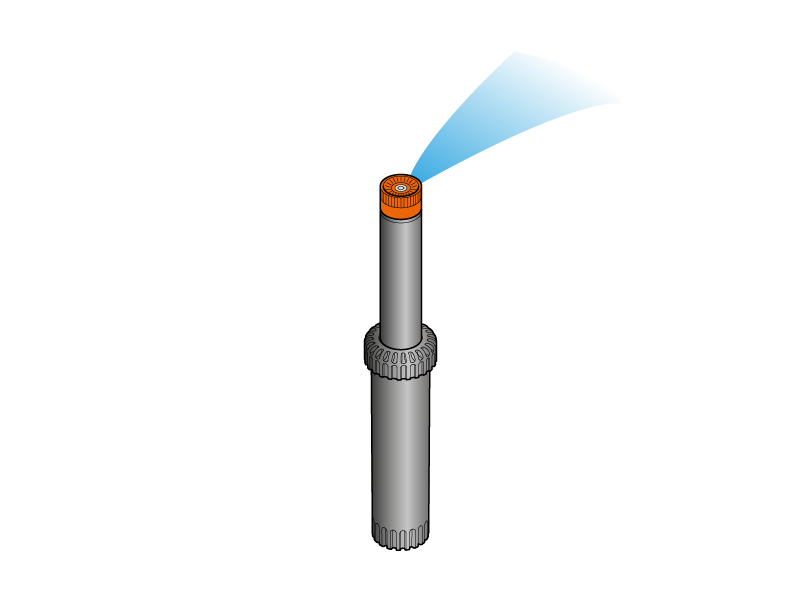

The sprinkler delivers a wide range.

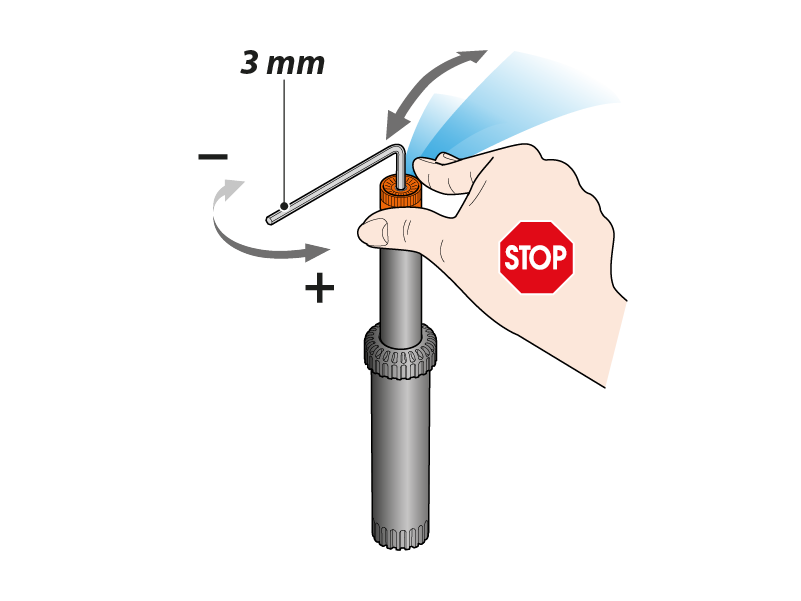

Turn the system on, and engage the hex socket screw on the sprinkler head with a 3mm Allen key. Turn anticlockwise for a longer jet, or clockwise for a shorter one.

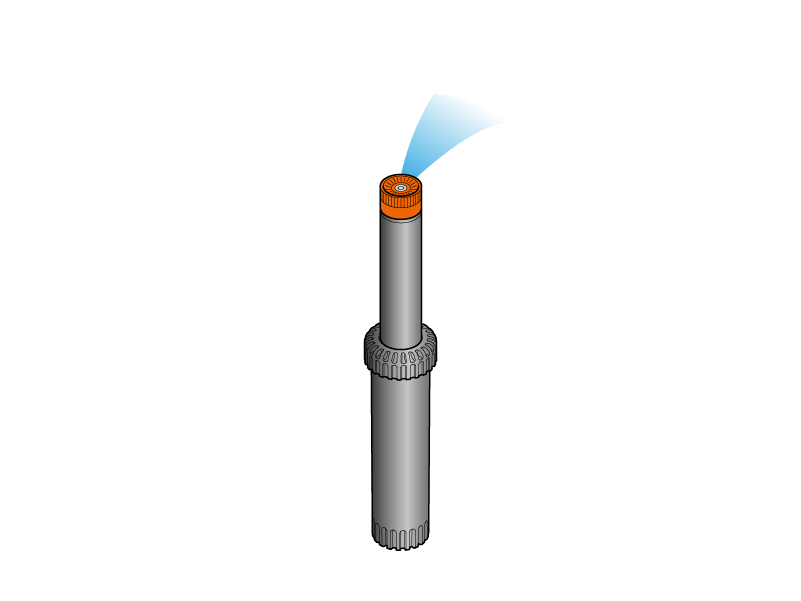

Now the sprinkler delivers a minimum range.

CLEANING AND MAINTENANCE

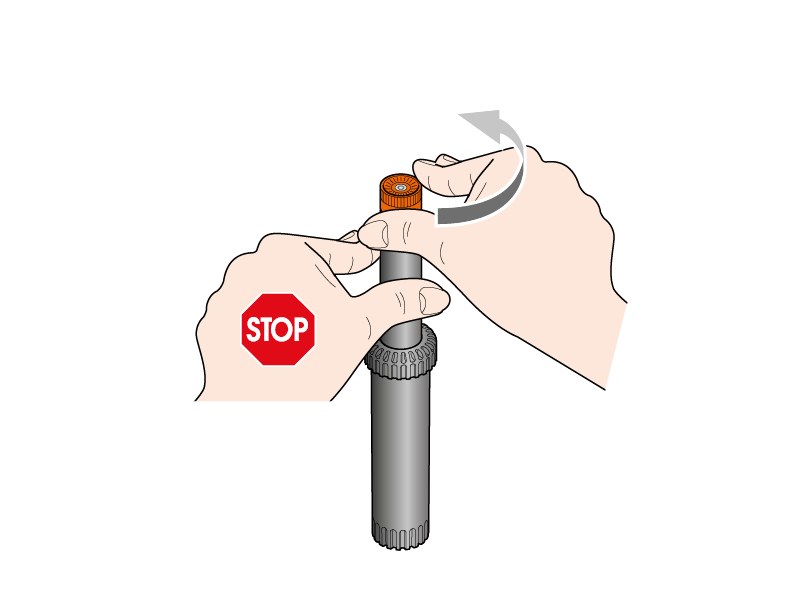

Pebbles, sand, earth or other foreign bodies entering the head could cause the sprinklers to malfunction. Clean as follows: holding the stem with one hand, unscrew the upper part;

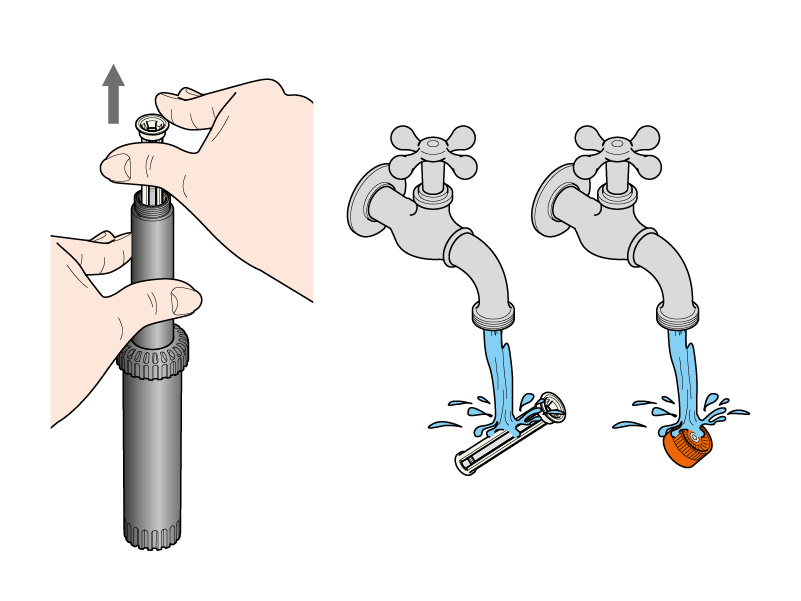

take out the filter and clean it, together with the upper part of the sprinkler, under running water;

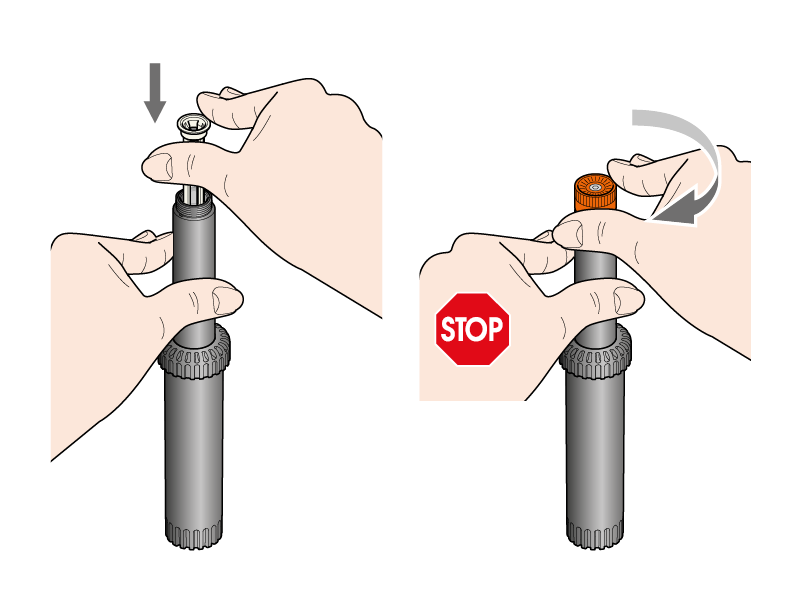

reposition the filter and reassemble the upper part of the sprinkler.

TABLES INDICATING WATER USAGE OF SPRINKLERS

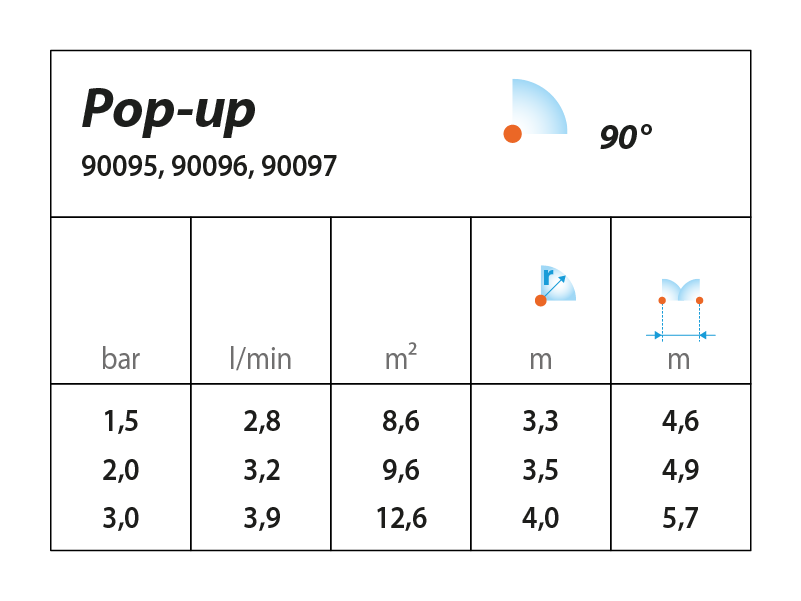

Cod. 90095, 90097

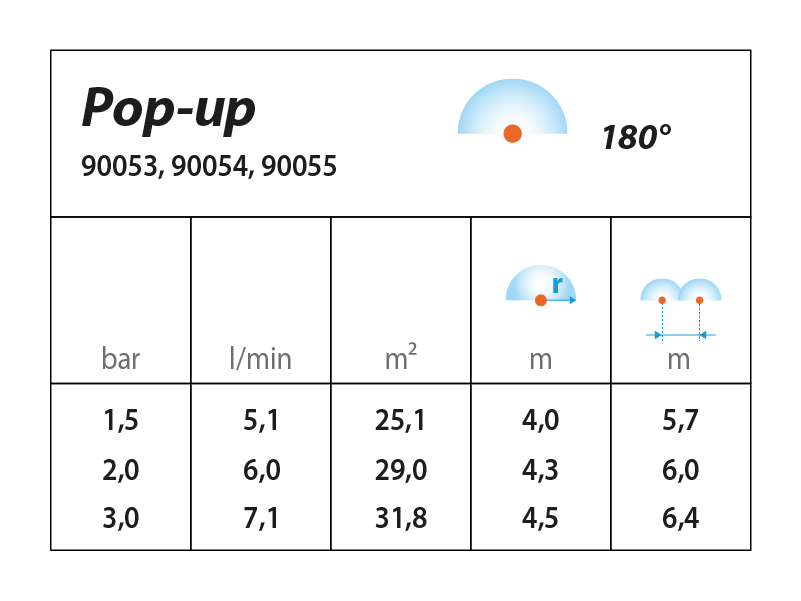

Cod. 90053, 90055

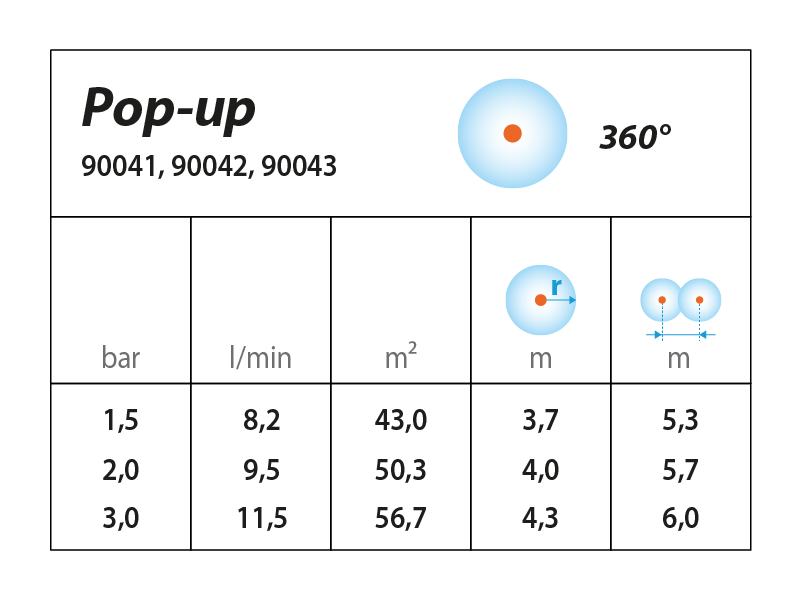

Cod. 90041, 90043
