Medium-jet turbine sprinkler
code 90474

Download guide
DETERMINING THE OPERATING ARC. Setting the irrigation start point

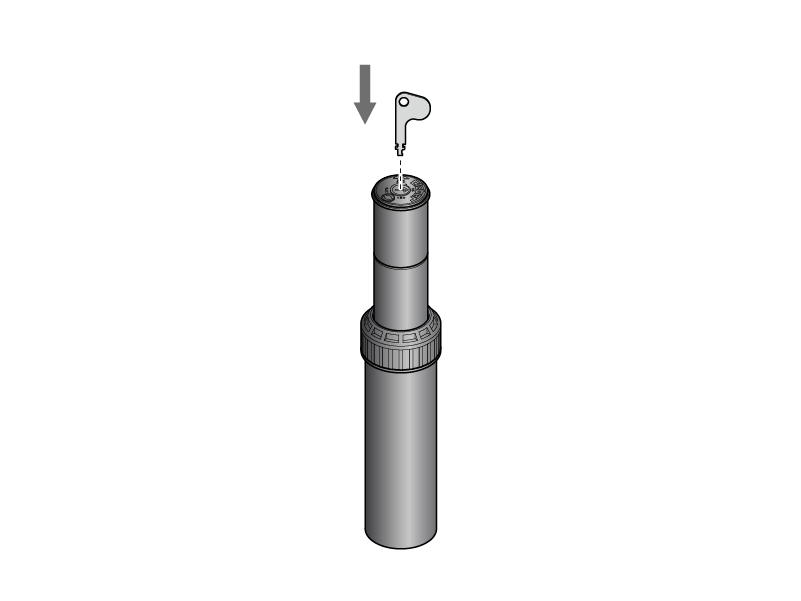

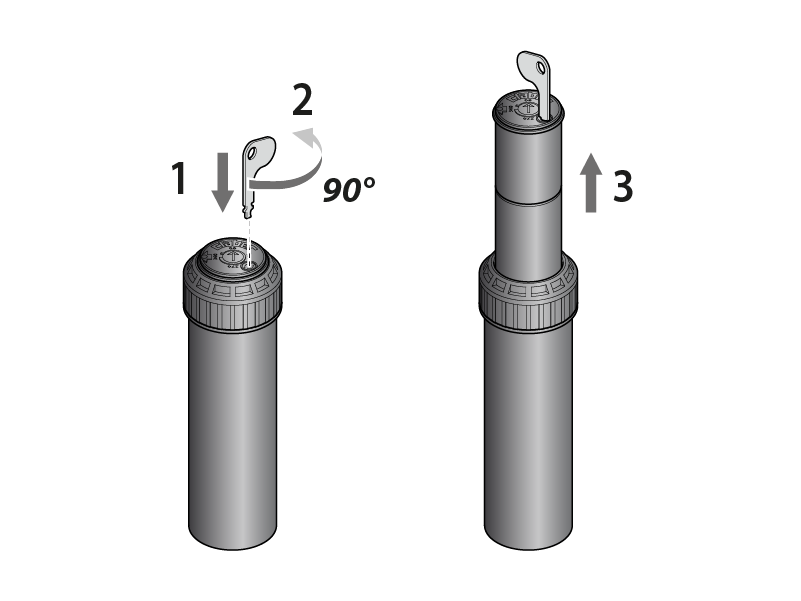

Insert the key in the slot to lift the sprinkler.

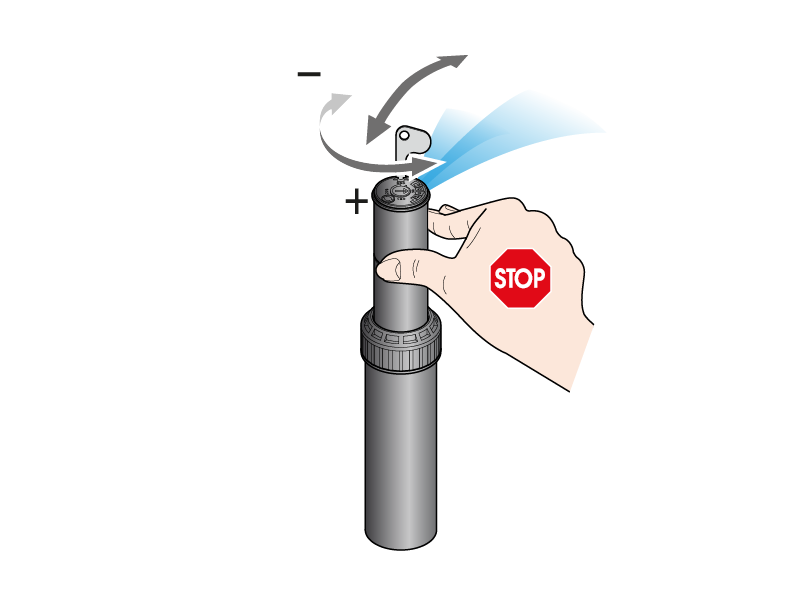

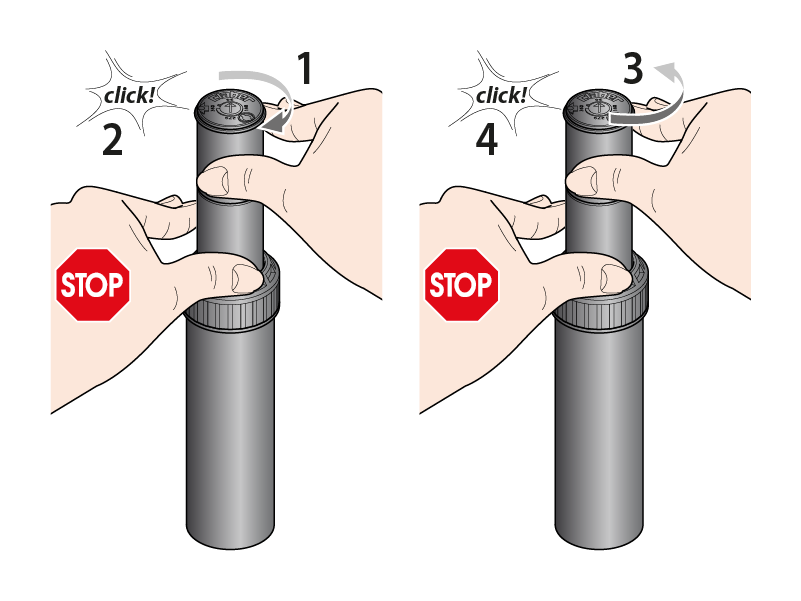

Rotate the turret clockwise using thumb and forefinger, without forcing, to reach the “stop” position; now rotate anticlockwise as far as the limit in the opposite direction.

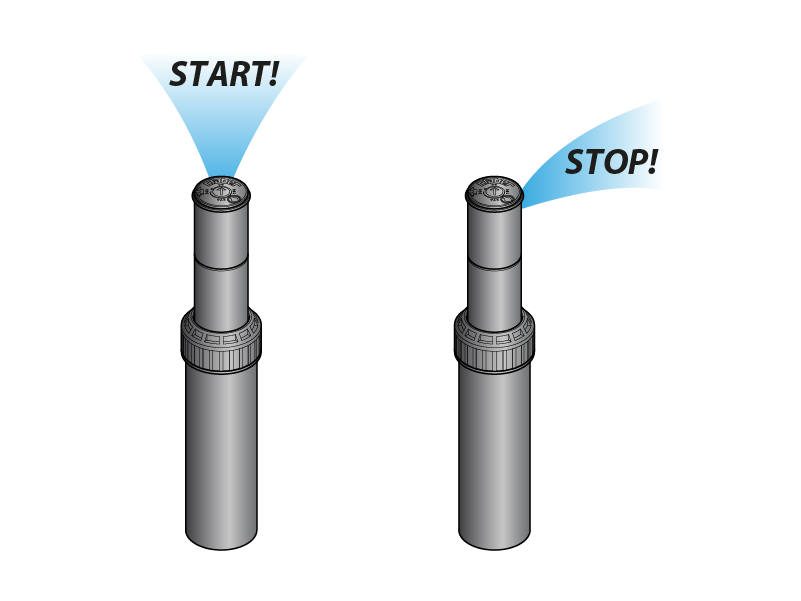

The sprinkler will begin to operate, spinning clockwise.

VARY THE ANGLE COVERED BY THE JET

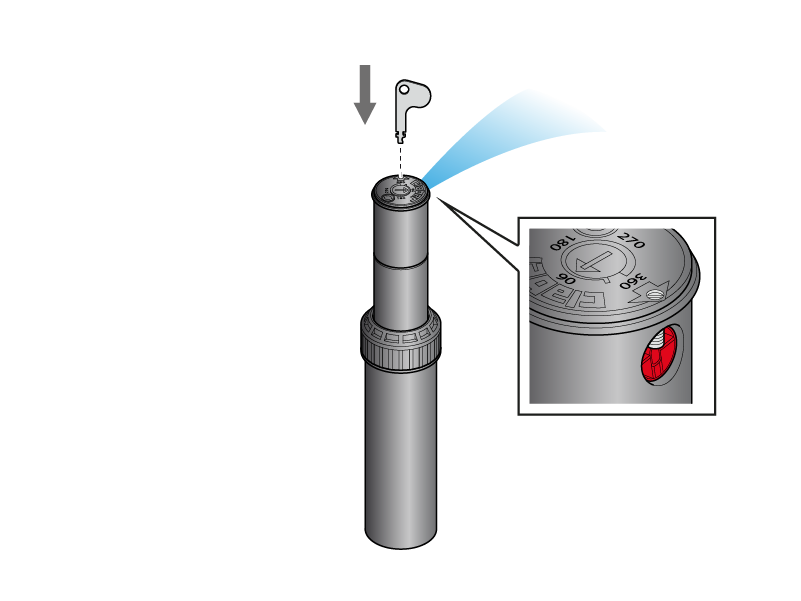

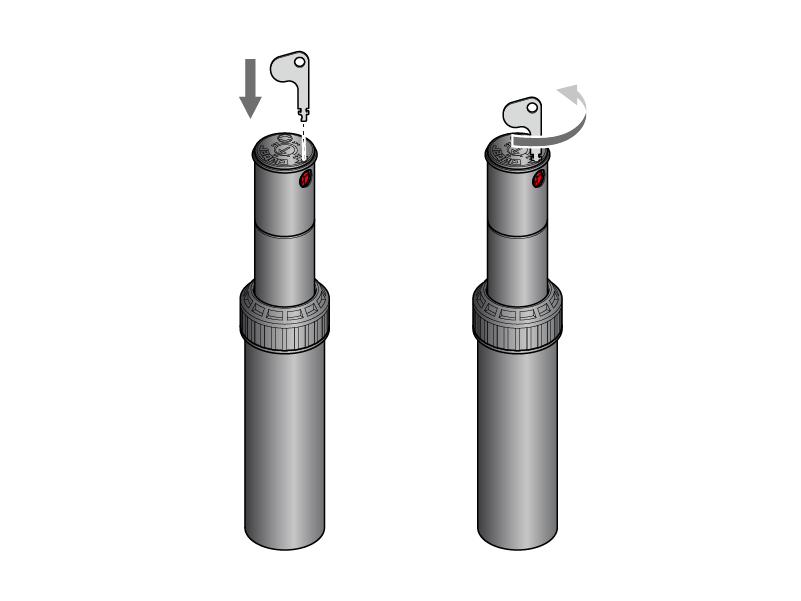

Insert the key in the slot above the arrow.

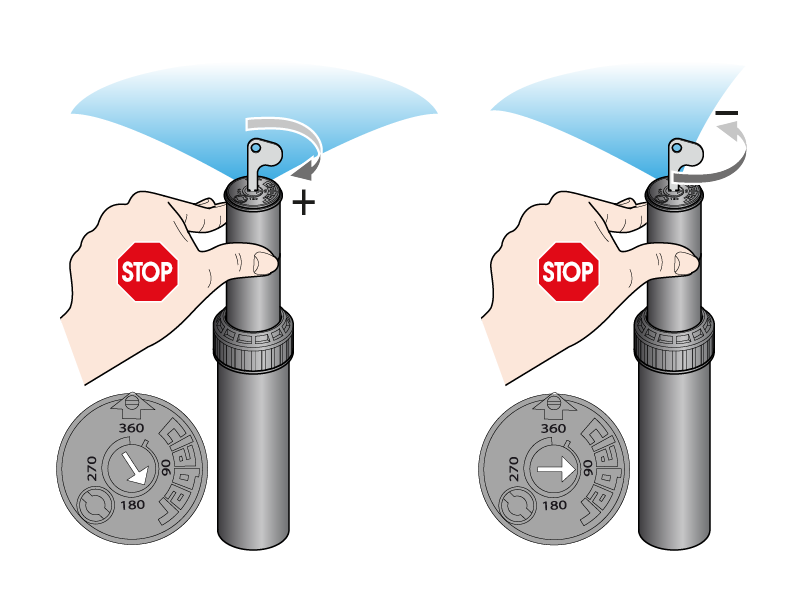

Hold the turret fast with one hand, and turn the key clockwise until the arrow is positioned at the required work arc.

INCREASE OR REDUCE THE LENGTH OF THE JET

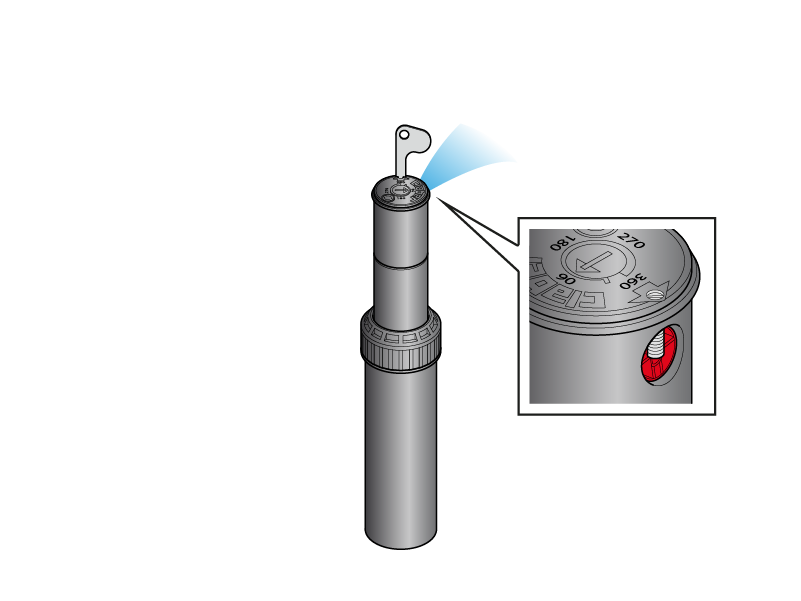

To reduce the range of the jet, insert the key in the sprinkler head screw.

Rotate clockwise.

REPLACE THE NOZZLE

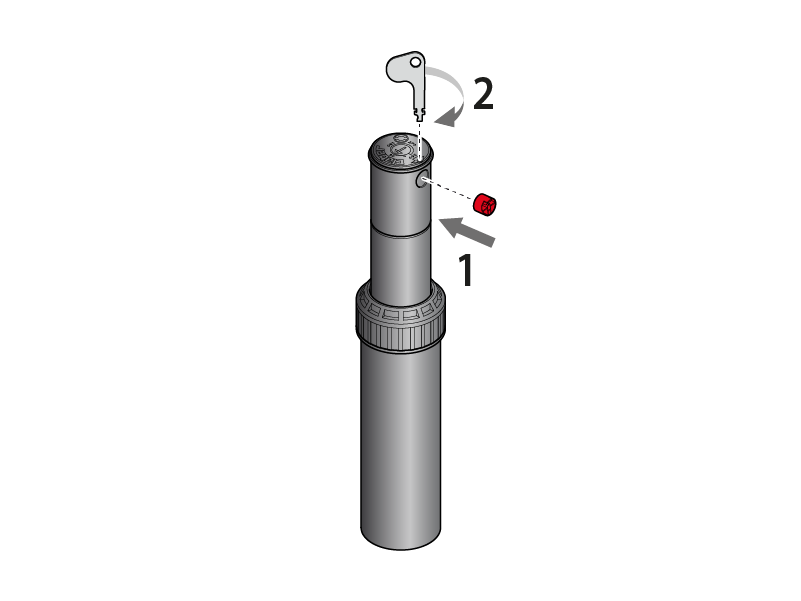

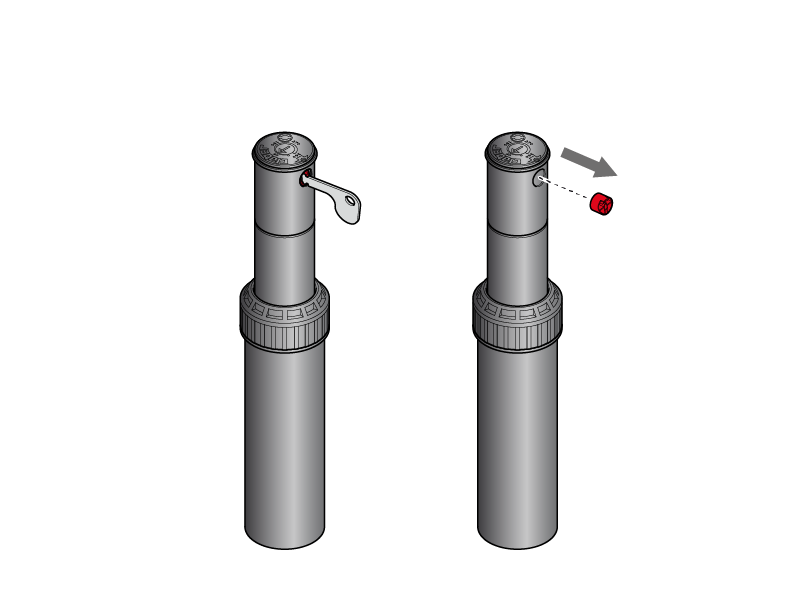

Unscrew the head completely and remove the nozzle with the aid of the key.

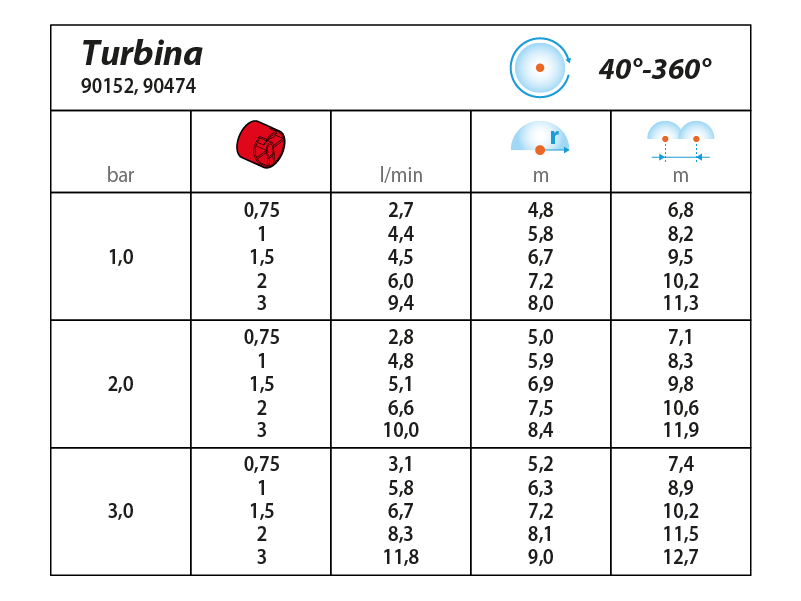

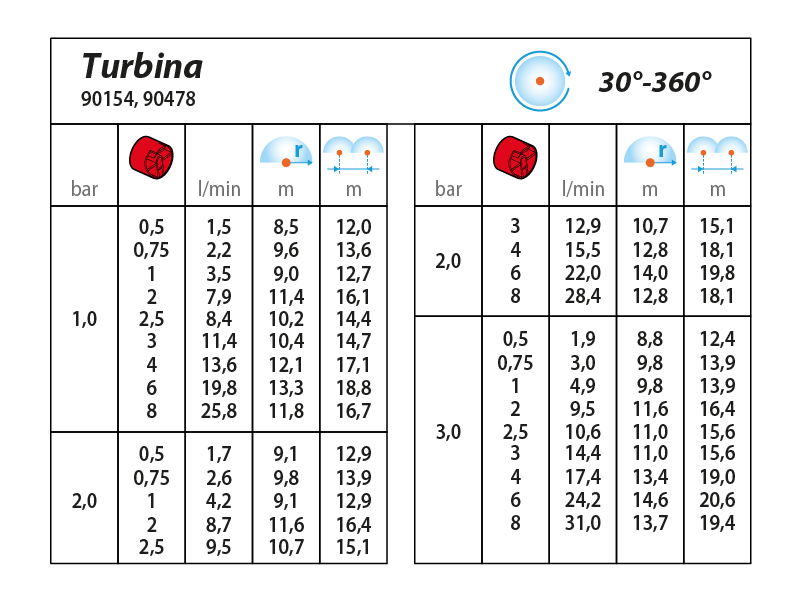

TABLES INDICATING WATER USAGE OF SPRINKLERS

Cod. 90152, 90474

Cod. 90154, 90478
