Aquauno Mist

code 8496

You just need to turn two knobs to easily manage your own customised programme. The times and frequencies that can be set are carefully designed to allow drip irrigation to be programmed or to turn on a cooling system.

  • easy to programme
  • 51 possible combinations
  • manual mode
  • dual function: watering and cooling
GO TO SPECIFICATIONS
COMPARE

DESCRIPTION

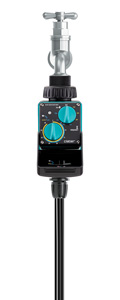

Automatic one-way timer, ideal for cyclical automation of both Happy Fresh cooling systems and watering systems on the terrace and in the garden. Easy programming with 2 rotary knobs: one to set the frequency and the other to select the run time. 27 programs can be selected for drip systems (yellow sector, run time from 2 to 90 mins every 12, 24 or 48 hours), 24 possible combinations for Happy Fresh systems (blue quadrant, run time from 5 to 45 seconds, every 1, 3, 5, 10 mins). Option of 5 min function test. Equipped with washable filter. Works with 9 V alkaline battery. Electronic part perfectly sealed. Operating pressure from 0.5 to 10 bars. 100% checked and tested.

WATCH THE VIDEO

TECHNICAL SPECIFICATIONS

  • Width: 68 mm
  • Height: 160 mm
  • Depth: 112 mm
  • Weight: 366 g
  • body: ABS
  • tap connector: PA66
  • filter: stainless steel, rubber
Bar 0,5 1 2 2,5 3 4 5
l/min 14 19 27 30 33 38 42
  • Inlet thread: 3/4"
  • Outlet quick connection: Quick-Click System
  • Working pressure: 0,5 - 10 bar
  • Outlets: 1
  • Programmes: 51
  • Type of programmes: preset
  • Frequency of watering cycles: 2 per day
  • Min. watering duration: 00:02′
  • Max. watering duration: 01:30′
  • Rain sensor: no
  • Powered by: 1x9V
  • Warranty: 2
  • Mist-spray frequency (in minutes):
  • Min. mist-spray duration (in seconds): 5
  • Max mist-spray duration (in seconds): 45
Code PackagingQuantityWidthHeightDepthVolumeWeightPcs per pallet
8496 Hanging carded pack 2pcs 19cm 16,5cm 16cm 0,005m³ 1,05 280pcs
