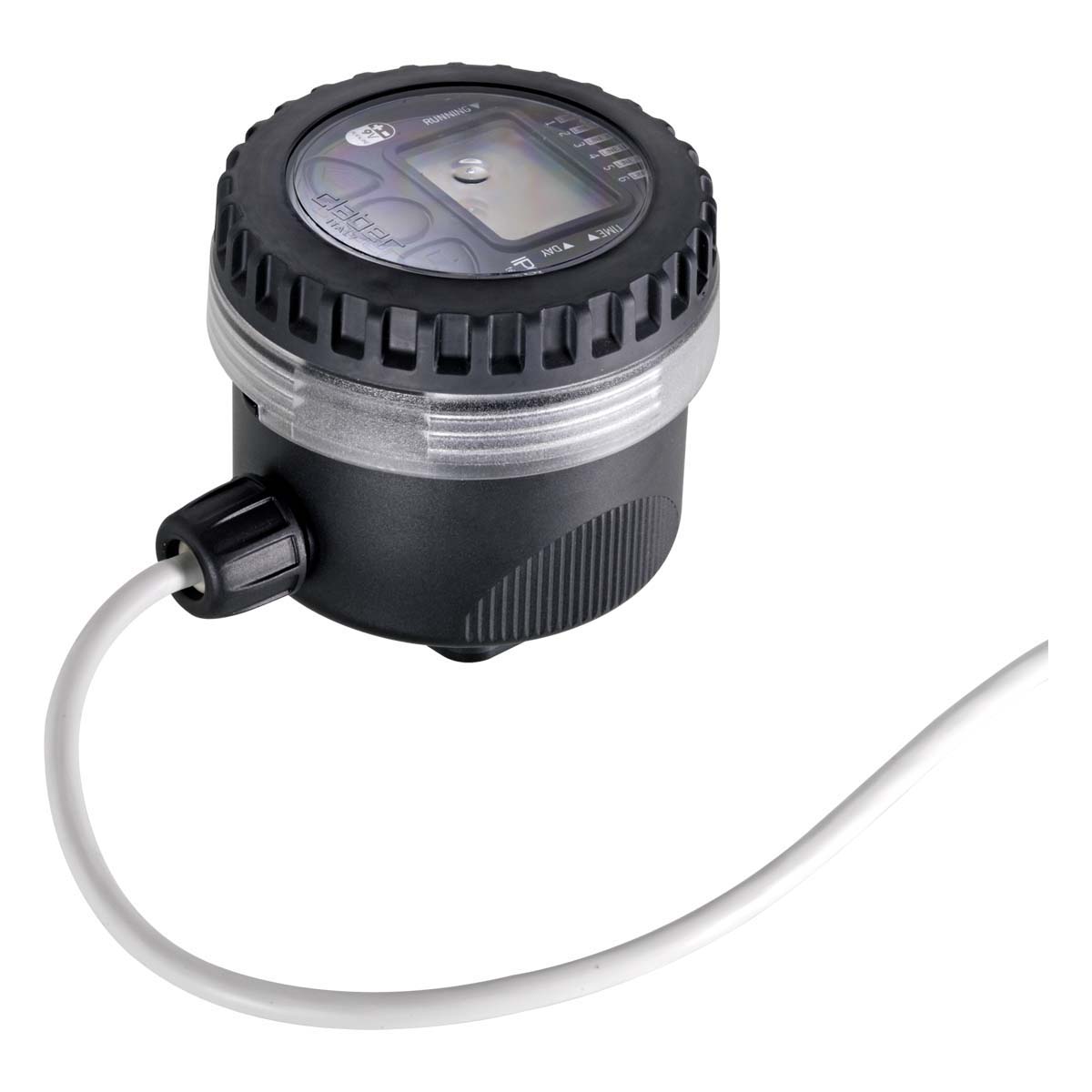

Control unit

code 90821

A practical, reliable solution to program underground irrigation systems, controlling one or two solenoid valves if there is no electricity.

  • independent from electricity network
  • iP68 protection: the maximum against water, moisture and dust
  • can be connected with Ran Sensor
GO TO SPECIFICATIONS
COMPARE

DESCRIPTION

From a field station, the unit will pilot the opening and closing movements of one or two 9V bistable solenoid valves installed in valve boxes. Protected by 100% sealed cover operates also in total submersion. Easy to program with three keys only. Irrigation time from 1 min to 23 h. 59 min. With option of up to 6 irrigation cycles per day. Manual and weekly programming with exclusion of specific weekdays as required. Connected to a rain sensor (code 90915), the unit will suspend watering operations in the event of rainfall greater than 5mm per square metre. Operates with a 9 V battery, sufficient for an entire season. The control unit can be wall-mounted, using a special bracket, for ease of programming and practical maintenance.

WATCH THE VIDEO

TECHNICAL SPECIFICATIONS

  • Width: Ø103 mm
  • Height: 92 mm
  • Depth: Ø103 mm
  • Weight: 430 g
  • body: PA6
  • cover lid: PC, rubber
  • bracket: PA6
  • Fixing: can be wall-mounted
  • Voltage: 9V
  • Outlets: 2
  • Programmes: 6
  • Type of programmes: customizable
  • Frequency of watering cycles: 6 per day, 1 per week, with the exclusion of single days
  • Min. watering duration: 00:01′
  • Max. watering duration: 23:59′
  • Rain sensor: wired
  • Powered by: 1x9V
  • Valves voltage: 9V Latching
  • Warranty: 2
Code PackagingQuantityWidthHeightDepthVolumeWeightPcs per pallet
90821 Box 1pc 11cm 19,5cm 11,5cm 0,002m³ 0,58 240pc
